產品介紹

符合歐洲EN1757-1:2001,EN1727 標準；

高強度（25MnV）槽鋼門架，堅固安全；

大容量的牽引電池，充電方便快捷，電量持久；

可選配人性化的護臂結構和折疊式踏板，開閉操作方便；

臺灣極智泵站,體積小,可靠性高,工作平穩,節能,降噪,環保；

美國進口的科蒂斯（Curtis）交流電控系統反應靈敏，操控自如，可靠性高；

EPS電子轉向系統和驅動減振技術增強操作的可靠性和操作人員的舒適度；

加裝安全防爆閥，液壓軟管一旦失效情況下貨物不會快速下落，確保操作人員人身安全。

In compliance with European standards: EN1757-1:2001, EN1727;

Mast is made from 25MnV high strength channel steel, stronger and safer;

High capacity durable lead-acid battery lasts for long time continuously work;

Ergonomic design handle and standing pedal as optional device, easy to release and collect;

Taiwan KS lift pump, with small volume, reliable and stable performance, noiseless and environment friendly;

America Curtis electric control assy, with rapid-response, easy operation and high reliability;

EPS(Electric Power Steering) system and driving vibration absorption technology enhance the reliability to operation and comforts to personnel;

With anti-explosion valve, material won’t fall down directly if hydraulic hose failed, guarantee the safety to personnel.

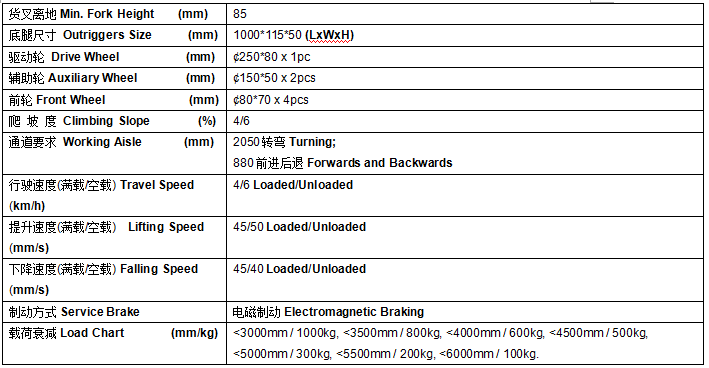

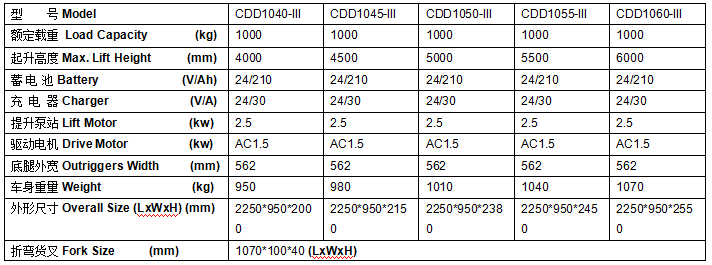

產品參數

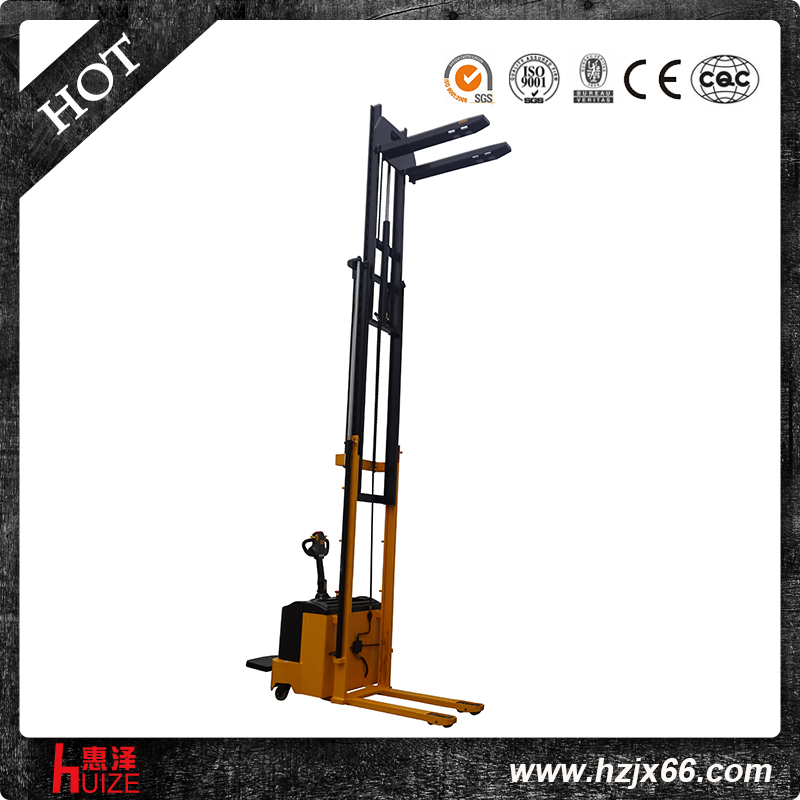

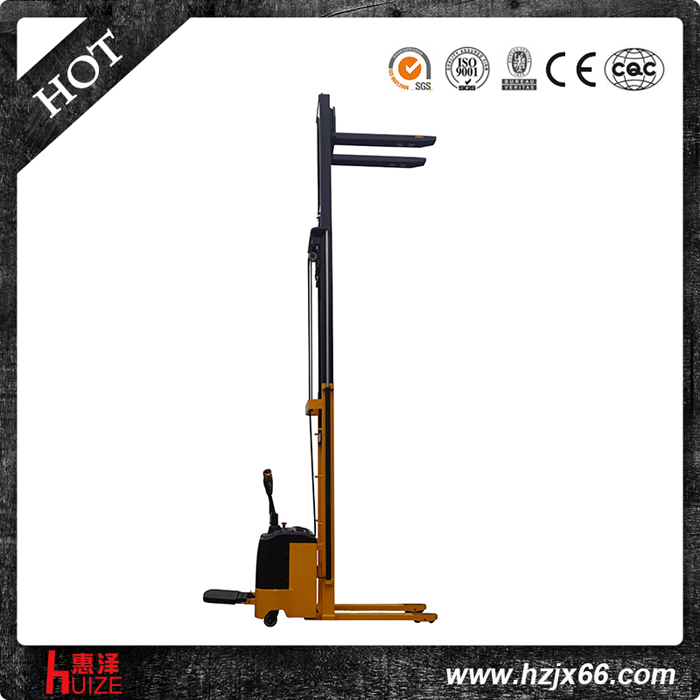

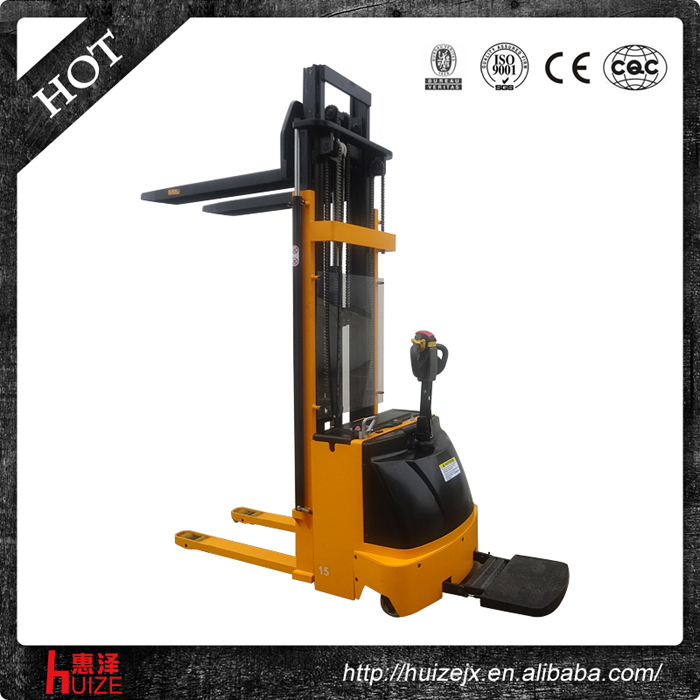

產品圖片



1.客戶收到的產品與訂貨產品型號不符。

2.客戶收到的產品不符合訂貨要求中的規定，造成不能正常使用。
